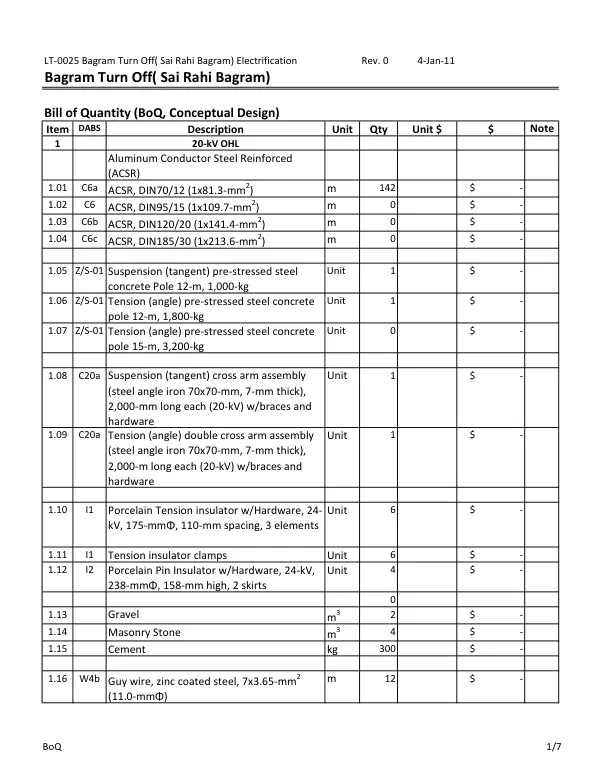

Bill of Quantity (BoQ, Conceptual Design) for LT-0025 Bagram Turn Off( Sai Rahi Bagram) Electrification

The project requires the use of Aluminum Conductor Steel Reinforced (ACSR) conductors, with various sizes and types specified for different sections of the line. The ACSR conductors are to be used for the 20-kV OHL, with the specific types and quantities listed as follows: C6a (ACSR, DIN70/12, 1x81.3-mm2), C6 (ACSR, DIN95/15, 1x109.7-mm2), C6b (ACSR, DIN120/20, 1x141.4-mm2), and C6c (ACSR, DIN185/30, 1x213.6-mm2). The project also involves the installation of pre-stressed steel concrete poles, with various sizes and types specified for different sections of the line. The poles are to be used for suspension and tension applications, with the specific types and quantities listed as follows: Z/S-01 Suspension (tangent) pre-stressed steel concrete Pole 12-m, 1,000-kg, Z/S-01 Tension (angle) pre-stressed steel concrete pole 12-m, 1,800-kg, and Z/S-01 Tension (angle) pre-stressed steel concrete pole 15-m, 3,200-kg. In addition to the OHL system, the project also involves the installation of secondary distribution equipment, including a 400-V OHL to meter boxes. The 400-V OHL is to be used for the distribution of electricity to meter boxes, with the specific types and quantities listed as follows: C9a (ABC, AL 3x50-mm2 + 1x50-mm2), C9 (ABC, AL 3x70-mm2 + 1x50-mm2), C9b (ABC, AL 3x95-mm2 + 1x70-mm2), and C9c (ABC, AL 3x120-mm2 + 1x70-mm2). The project also involves the installation of meter boxes, with the specific types and quantities listed as follows: M-002 Meter Box (8) including all wiring using 1x6-mm2 copper wire with fuse and main fuse + Joint clip complete, Pad mounted, and M-003 Meter Box (8) including all wiring using 1x6-mm2 copper wire with fuse and main fuse + Joint clip complete, Pole mounted. The project also requires the use of various types of cables, including copper cables with different sizes and types. The specific types and quantities of cables required are listed as follows: HO7 1x70-mm2, 400-V, HO7 1x300-mm2, 400-V, and HO7 1x50-mm2, 0.6/1-kV. The project also involves the installation of service laterals and SE disconnects, with the specific types and quantities listed as follows: C3c (CU NYY 3x10-mm2 RE), C3e (CU NYY 5x10-mm2 RE), Service disconnect, 32-A, 1-P metal enclosed circuit breaker, SqD, and Service disconnect, 32-A, 3-P metal enclosed circuit breaker, SqD. The total quantity of materials required for the project is listed in the final section of the document, with the specific types and quantities of materials required for each item listed. The total cost of the project is also listed in the final section of the document. The Bagram Turn Off (Sai Rahi Bagram) Electrification project involves the installation of a 20-kV OHL system, with various types and quantities of materials required for different sections of the line. The project also involves the installation of secondary distribution equipment, including a 400-V OHL to meter boxes, and service laterals and SE disconnects. The total quantity of materials required for the project is listed in the final section of the document, with the specific types and quantities of materials required for each item listed.
