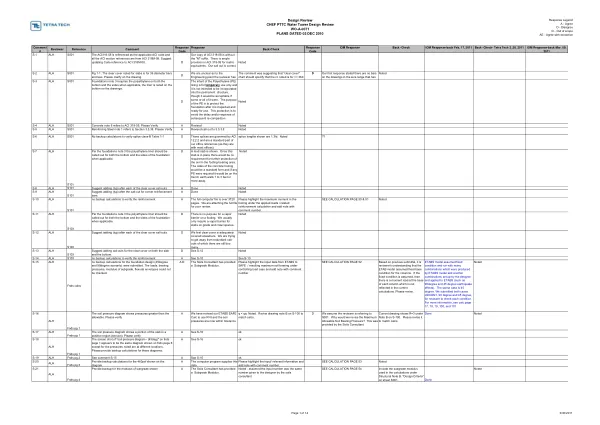

Design Review: CHEF PTTC Water Tower Design Review

The review process involved a thorough examination of the design by multiple reviewers, with responses and comments provided to address various concerns and suggestions. The design of the water tower is based on the American Concrete Institute (ACI) 318M-08 code, which is referenced throughout the document. However, some reviewers suggested updating the code reference to ACI 318-08, citing that their copy of the code does not include the "M" suffix. The designers responded that their callouts are correct, as there are ample provisions in ACI 318-08 for metric equivalents. The review process also focused on the clear cover of the slabs, with some reviewers suggesting that the clear cover chart should specify that the clear cover noted is for bars with a diameter of 36 inches or less. The designers responded that there are no bars on the drawings in the size range that has clear cover noted, and that the clear cover is adequately covered elsewhere. The design of the foundations was also reviewed, with some reviewers suggesting that the polyethylene liner should be called out for both the bottom and the sides of the foundation when applicable. The designers responded that the liner is only required for temporary use and is not intended to be incorporated into the permanent structure. The review process also examined the reinforcement calculations, with some reviewers suggesting that backup calculations were needed to verify the reinforcement. The designers responded that the full computer file is over 3,720 pages, and that they are attaching the full file for review. They also provided specific calculations and notes to address the reviewers' concerns. The design of the steel tank was also reviewed, with some reviewers suggesting that the calculations were incomplete or incorrect. The designers responded that they had revised the calculations to address the reviewers' concerns, and that the tank design is conservative and meets the required standards. Overall, the CHEF PTTC Water Tower Design Review is a comprehensive document that outlines the design and structural integrity of the water tower. The review process involved a thorough examination of the design by multiple reviewers, with responses and comments provided to address various concerns and suggestions. The designers responded to the reviewers' comments, providing specific calculations and notes to address their concerns. The design of the water tower is based on the American Concrete Institute (ACI) 318M-08 code, which is referenced throughout the document. The design includes a comprehensive review of the clear cover of the slabs, the design of the foundations, and the reinforcement calculations. The design of the steel tank was also reviewed, with the designers providing revised calculations to address the reviewers' concerns. The review process involved a thorough examination of the design by multiple reviewers, with responses and comments provided to address various concerns and suggestions. The designers responded to the reviewers' comments, providing specific calculations and notes to address their concerns. The design of the water tower is conservative and meets the required standards, with the designers providing revised calculations to address the reviewers' concerns.
